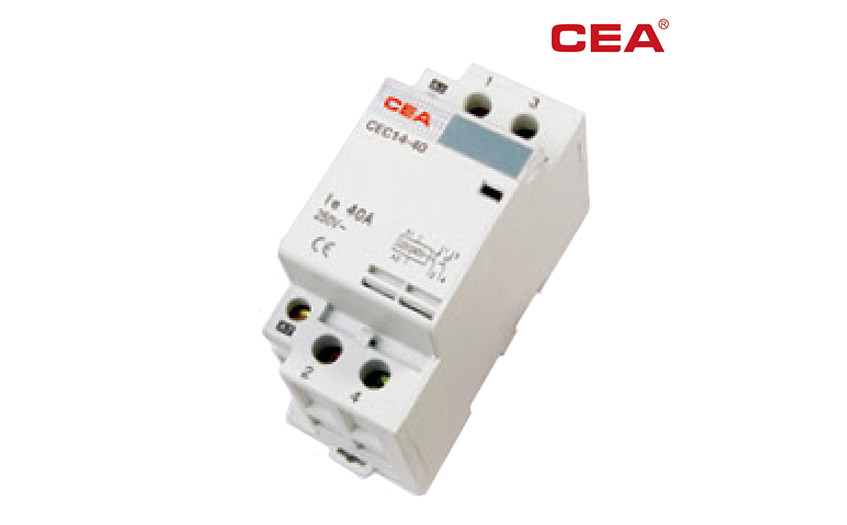

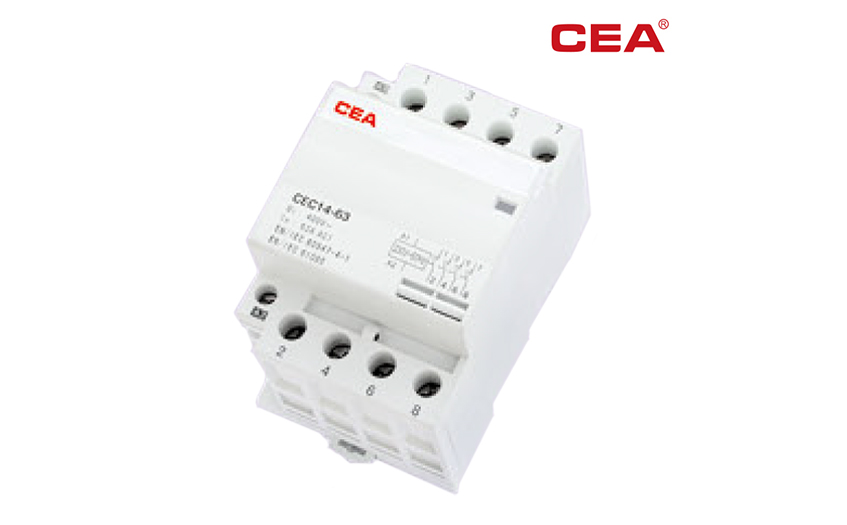

CEC14 modular contactor is mainly designed for AC 50Hz or 60Hz circuits with 230V rated operating voltage,In AC-7a usage,rated operating voltage up to 230V,rated operating current up to 25A,it functions as long distance breaking and circuit controlling.
◆Application
CEC14 modular contactor is mainly designed for AC 50Hz or 60Hz circuits with 230V rated operating voltage,In AC-7a usage,rated operating voltage up to 230V,rated operating current up to 25A,it functions as long distance breaking and circuit controlling.This product is mainly applied to household appliances of low inductance loading and household motor loading control used for the similar purpose
◆Specifications
Model | CEC14-20(25) | CEC13-63 | CEC14-63 | CEC14-63 |
Poles | 1P 2P | 3P 4P | 1P 2P | 3P 4P |
Current | 10,16,20,(25)A | 10,16,20,25A | 25,32,40,63A | 25,32,40,63A |
Contact | 1N0,2N0 | 3N0,4N0,4NC 2N0+2NC | 1N0,2N0,2NC | 3N0,4N0,4NC 2N0+2NC |
Coil | AC50Hz/60Hz 220V/230V 127V 110V 36V 24V | |||
