The inherent flame resistance of the unjacketed product makes it suitable for a range of uses where high mechanical strength yet extreme flexibility is required eg.building fire systems.
●manufacture either in galvanized steel or stainless steel.
●Interlocked structure for superior strength is available
●Non-flame propagating.
●High Flexibi lity & UV Resistance

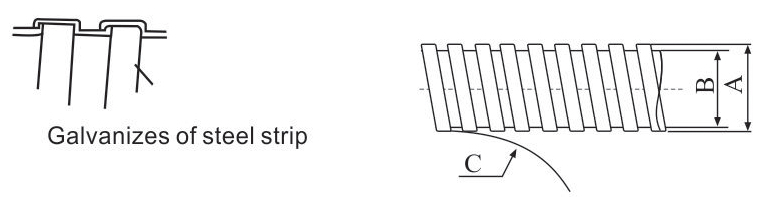

Item No. | Size(inch) | A | B | C | Reel Length |
Internal
Dia.(mm） | External
Dia.(mm) | Min.Bend
Radius(mm) |
JS-8 | - | 8 | 10 | 25 | 200m |
JS-10 | 5/16" | 10 | 12 | 30 | 100m |
JS-12 | - | 12 | 14 | 40 | 100m |
JS-13 | 3/8" | 13 | 15 | 43 | 100m |
JS-16 | 1/2" | 16 | 18 | 45 | 50m |
JS-19 | - | 19 | 22 | 50 | 50m |
JS-20 | 3/4" | 20 | 23 | 50 | 50m |
JS-25 | 1" | 25 | 28 | 57 | 50m |
JS-32 | 1 1/4" | 32 | 35 | 70 | 30m |
JS-38 | 1 1/2" | 38 | 42 | 80 | 30m |
JS-50 | 2" | 50 | 54 | 95 | 20m |
JS-63 | 2 1/2" | 63 | 68 | 140 | 10m |
JS-78 | 3” | 78 | 84 | 150 | 10m |
JS-100 | 4" | 100 | 107 | 190 | 10m |
