CEB60N have protective function of shortage and overload,and are used in lighting distribution system in industry,commerce and dwelling fractional electric motors.
◆Application
CEB60N have protective function of shortage and overload,and are used in lighting distribution system in industry,commerce and dwelling fractional electric motors.And they also have many merits of high protective grade(up to IP20),high reliable breaking capacity, sensitive action,convenient,multiple assembling,long life etc.They are mainly adapted to the circuit of AC 50Hz,230V in single pole,400V in double,three,four poles for protecting overload and short circuit.Meanwhile,they are also used in tuming on or off the electric apparatus and lighting circuit under the normal condition.
◆Specifications
Pole No. | 1P,2P,3P,4P |
Rated Voltage | 230V/400V |
Electrical Life | 4000times |
Mechanical Life | 10000times |
Rated Current | 1,2,3,4,6,10,16,20,25,32,40,50,63A |
Protective Grade | IP20 |
Standard | IEC60898 |

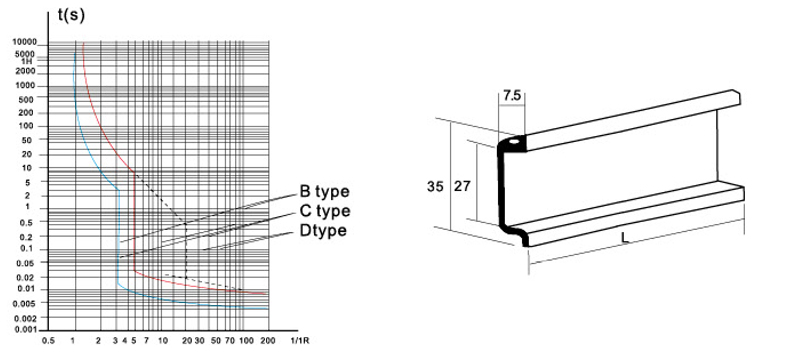

◆Characteristic Curve
◆Dimensions
