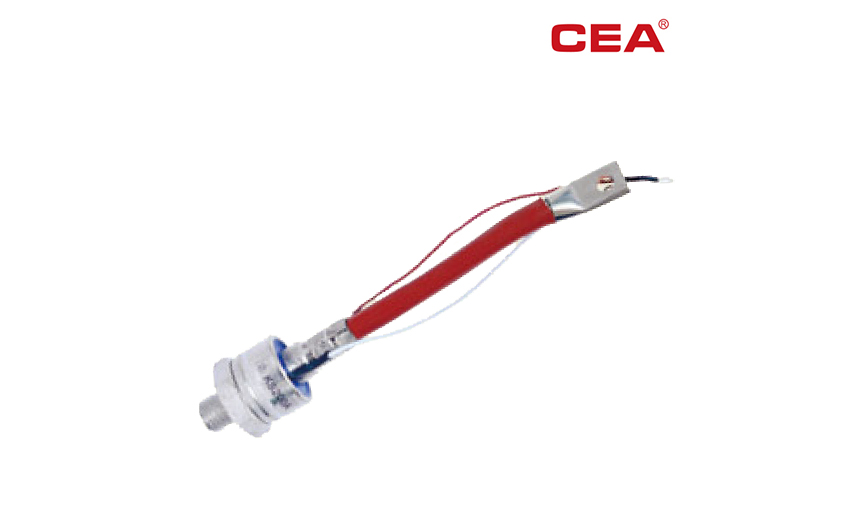

◆I.Stud Model
Type | IT(RSM) | VTM | VDRM | IDRM | IGT | VGT | IH mA | Dv/dt V/us | Tj ℃ | Rjc ℃/W |
KS5A | 5 | ≤2.6 | 100~2000 | ≤30 | ≤350 | ≤3.5 | ≤250 | ≥100 | -40~+125 | ≤0.11 |
KS10A | 10 | |||||||||
KS20A | 20 | |||||||||
KS50A | 50 | |||||||||
KS100A | 100 | |||||||||
KS200A | 200 |

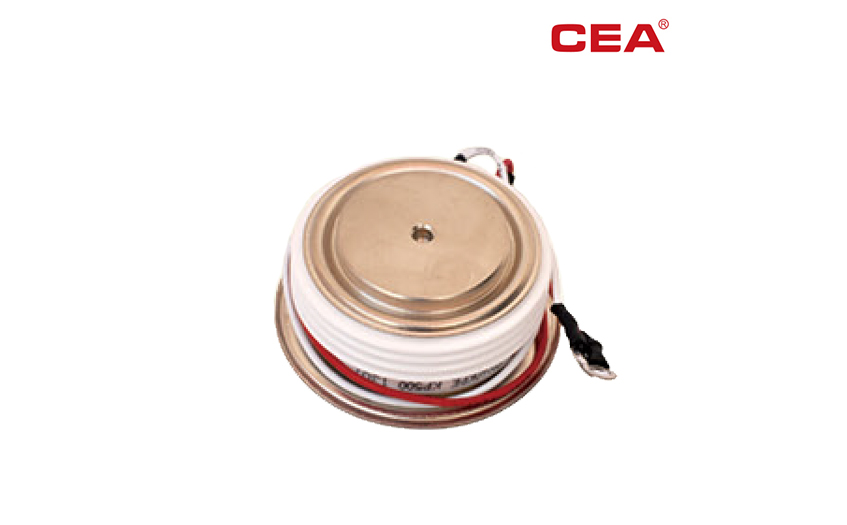

◆II.Discus Model
Type | IT(RSM) | VTM | VDRM | IDRM | IGT | VGT | IH mA | Dv/dt V/us | Tj ℃ | Rjc ℃/W |
KS100A | 100 | ≤2.6 | 100~2000 | ≤30 | ≤350 | ≤3.5 | ≤350 | ≥200 | -40~+125 | ≤0.11 |
KS200A | 200 | ≤0.08 | ||||||||
KS300A | 300 | |||||||||
KS500A | 500 | ≤40 | ≤400 | ≤400 | ≤0.04 | |||||
KS800A | 800 | |||||||||
KS1000A | 1000 |
