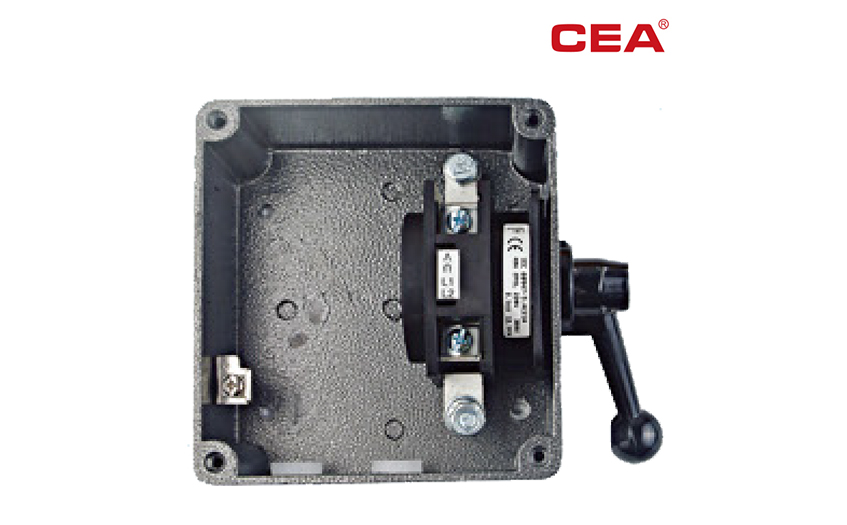

This product is mainly used to start,stop,forward or backward directly three-phase asynchronus electric motor with AC 50Hz,voltage up to 500V and capacity up to 7.5KW.
◆Application
This product is mainly used to start,stop,forward or backward directly three-phase asynchronus electric motor with AC 50Hz,voltage up to 500V and capacity up to 7.5KW.It can also be used for changeover from one kind of circuit to the other.
◆Specifications
Type | Mark | Rated Current | Rated Power | Electrical Life | Mechanical Life | Frequency of | Applications | Position |
CEK2-20A 2/4 | I-O | 20 | 7.5 | 100000 | 250000 | 200 | ON-OFF switching | 0-60 |
CEK2-32A 2/4 | I-O | 32 | 11 | |||||
CEK2-40A 2/4 | I-O | 40 | 15 | 80000 | 200000 | 180 | ||
CEK2-63A 2/4 | I-O | 63 | 30 |
