0.5~1.5mm²(22-16) Imax=27A

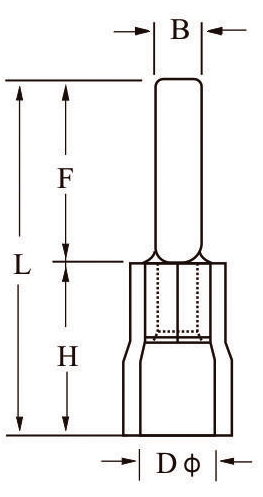

Item No. | Dimension (mm) | Color | ||||
B | L | F | H | DΦ | ||
DBV1.25-10 | 2.3 | 20.0 | 10.0 | 10.0 | 4.3 | Red |
DBV1.25-11 | 3.0 | 21.0 | 11.0 | |||
DBV1.25-14 | 3.0 | 24.0 | 14.0 | |||
DBV1.25-18 | 2.3 | 28.0 | 18.0 | |||
1.5~2.5mm²(16-14) Imax=27A
Item No. | Dimension (mm) | Color | ||||
B | L | F | H | DΦ | ||
DBV2-9 | 2.8 | 19.0 | 9.0 | 10.0 | 4.9 | Blue |
DBV2-18 | 2.3 | 28.0 | 18.0 | |||
4~6mm²(12-10) Imax=48A
Item No. | Dimension (mm) | Color | ||||
B | L | F | H | DΦ | ||
BDV 5.5-10 | 2.8 | 22.5 | 10.0 | 13.0 | 5.6 | Yellow |
