22-26A.W.G. 9A
22-16AW.G. 19A
16-14A.W.G. 27A
12-10A.W.G. 48A
Max.voltage:105℃ 600V
22-26A.W.G. 9A 22-16AW.G. 19A 16-14A.W.G. 27A 12-10A.W.G. 48A Max.voltage:105℃ 600V

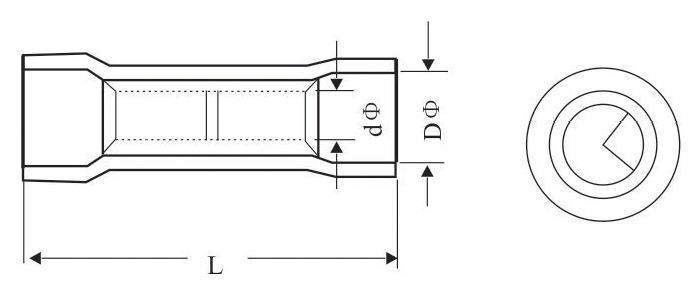

Item No. | Dimension(mm) | Joint Material | Cable Size | Color | ||
L | D Φ | d Φ | ||||
BNYF 0.5 | 20.0 | 2.0 | 1.3 | Copper | 26-22A.W.G | Yellow |
BNYF 1.25 | 27.3 | 3.2 | 1.7 | Copper | 22~16A.W.G | Red |
BNYF 2 | 27.3 | 3.8 | 2.3 | Copper | 16~14A.W.G | Blue |
BNYF 5.5 | 27.3 | 5.3 | 3.4 | Copper | 12-10A.W.G | Yellow |
Item No. | Dimension(mm) | Joint Material | Cable Size | Color | ||
L | DΦ | dΦ | ||||
BNY 1.25 | 27.3 | 3.2 | 1.7 | Copper | 26~16A.W.G | Red |
BNY 2 | 27.3 | 3.8 | 2.3 | Copper | 16~14A.W.G | Blue |
BNY 5.5 | 27.3 | 5.3 | 3.4 | Copper | 12-10A.W.G | Yellow |
