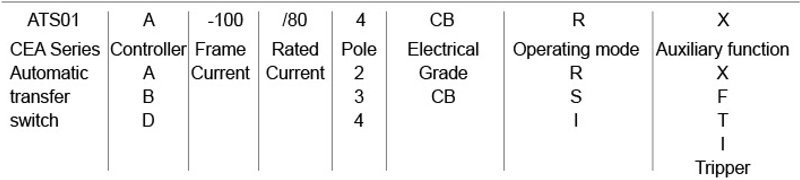

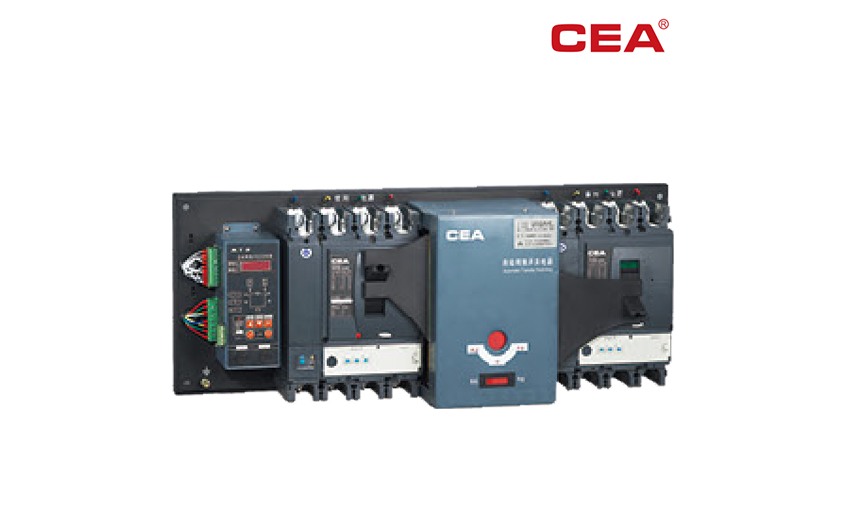

◆CB Grade Selection
Classified by controller:1)End terminal type 2)Basic type 3)ntelligent type
Classified by frame current grade:63,100,160,250,400,630,800,1250,1600
Classified by rated currentUsers choose according to different current grade and different tripping device(reference to MCCB senes)
Selected by Poles:2P(Only for C65 series),3P,4P(For all series)
Classified by electrical grade:CB-with short circuit overload protection
Classified by operating code:R-automatic put-in automatic restore,
S-automatic put-in but non-automatic restore,T-mutual backup
Classified by auxiliary function:X-fire control function,T-telecommunication base station particular use
F-feedback signal function l-current monitor modular type (only for type D controller choice)
◆Main technical parameters
Type | Controller | Pole | Electric | Available | Trip available |
ATS01-63 | A,B,D | 2P,3P,4P | CB | C65N,C65H,C65L | Curve C,D |
ATS01-100 | A,B,D | 3P,4P | NSX-F,NSX-N,NSX-H | Thermo-magnetic TM | |
ATS01-160 | A,B,D | 3P,4P | NSX-F,NSX-N,NSX-H | Thermo-magnetic TM | |
ATS01-250 | A,B,D | 3P,4P | NSX-F.NSX-N,NSX-H | Thermo-magnetic TM | |
ATS01-400 | B,D | 3P,4P | NSX-F,NSX-N,NSX-H | MIC2.3.MIC5.5E,MIC1.3M | |
ATS01-630 | B,D | 3P,4P | NSX-F,NSX-N,NSX-H | MIC2.3,MIC5.5E,MIC1.3M | |
ATS01-800 | B,D | 3P,4P | NSX-N.NSX-H | MIC2.0,MIC5.0 | |
ATS01-1000 | B,D | 3P,4P | NSX-N,NSX-H | MIC2.0,MIC5.0 | |
ATS01-1250 | B,D | 3P,4P | NSX-N.NSX-H | MIC2.0,MIC5.0 | |
ATS01-1600 | B,D | 3P,4P | NSX-N,NSX-H | MIC2.0,MIC5.0 |
◆PC Grade Selection
Classified by controller:1)End terminal type 2)Basic type 3)Intelligent type
Classified by frame cumrent grade:63,100,160,250,400,630,800,1250,1600
Classified by rated currentUsers choose according to different current grade and different tripping device (reference to MCCB series)
Selected by Poles:2P(Only for C65 series),3P,4P(For all series)
Classified by electrical grade:CB-with short circuit overload protection
Classified by operating code:R-automatic put-in &automatic restore,
S-automatic put-in but non-automatic restore,T-mutual backup
Classified by auxiliary function:X-fire control function,T-telecommunication base station particular use
F-feedback signal function I-cumrent monitor modular type(only for type D controller choice)
◆Main technical parameters
Type | Controller | Pole | Electric | Available |
ATS01-32~100 | A,B,D | 3P,4P | PC | INT Series |
ATS01-100 | A,B,D | 3P,4P | NSX-NA | |
ATS01-160 | A,B,D | 3P,4P | NSX-NA | |
ATS01-250 | A,B,D | 3P,4P | NSX-NA | |
ATS01400 | B,D | 3P,4P | NSX-NA | |
ATS01-630 | B,D | 3P,4P | NSX-NA |
