CESD2 series star-delta reduced voltage starter is suitable for starting motor in the circuit of AC 50/60Hz,voltage up to 660V and current up to 95A.
◆Application

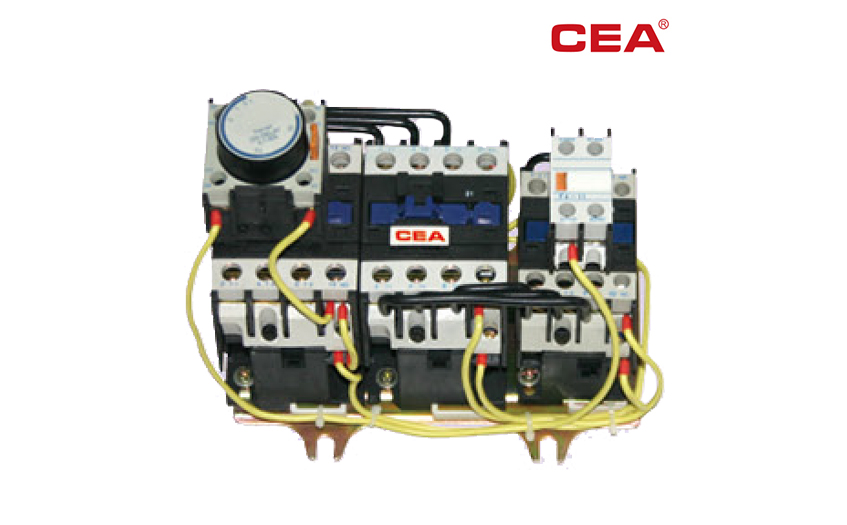

CESD2 series star-delta reduced voltage starter is suitable for starting motor in the circuit of AC 50/60Hz,voltage up to 660V and current up to 95A. It is provided with a timer for automatic changeover of star-delta to reduce the voltage and current of motor starting.
◆Specifications
Type | Rated Operating Current(A) | 3-Phase Motor Capacity(KW)AC3 Loaded | |||
AC3 | AC3 Loaded | ||||
220V | 380V | 415V | 440V | ||
CESD2-09-3 | 9 | 4 | 7.5 | 7.5 | 7.5 |
CESD2-12-3 | 12 | 5.5 | 11 | 11 | 11 |
CESD2-183 | 17 | 11 | 18.5 | 22 | 22 |
CESD2-253 | 25 | 11 | 18.5 | 22 | 22 |
CESD2-323 | 32 | 15 | 25 | 25 | 25 |
CESD2-403 | 40 | 18.5 | 37 | 37 | 37 |
CESD2-503 | 50 | 25 | 55 | 55 | 55 |
CESD2-803 | 80 | 37 | 75 | 75 | 75 |
CESD2-953 | 95 | 45 | 80 | 80 | 80 |

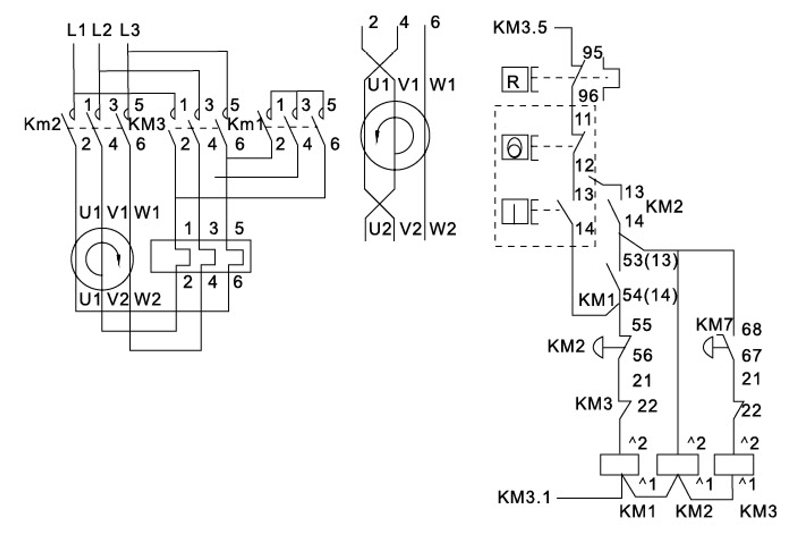

◆Wiring Diagram
