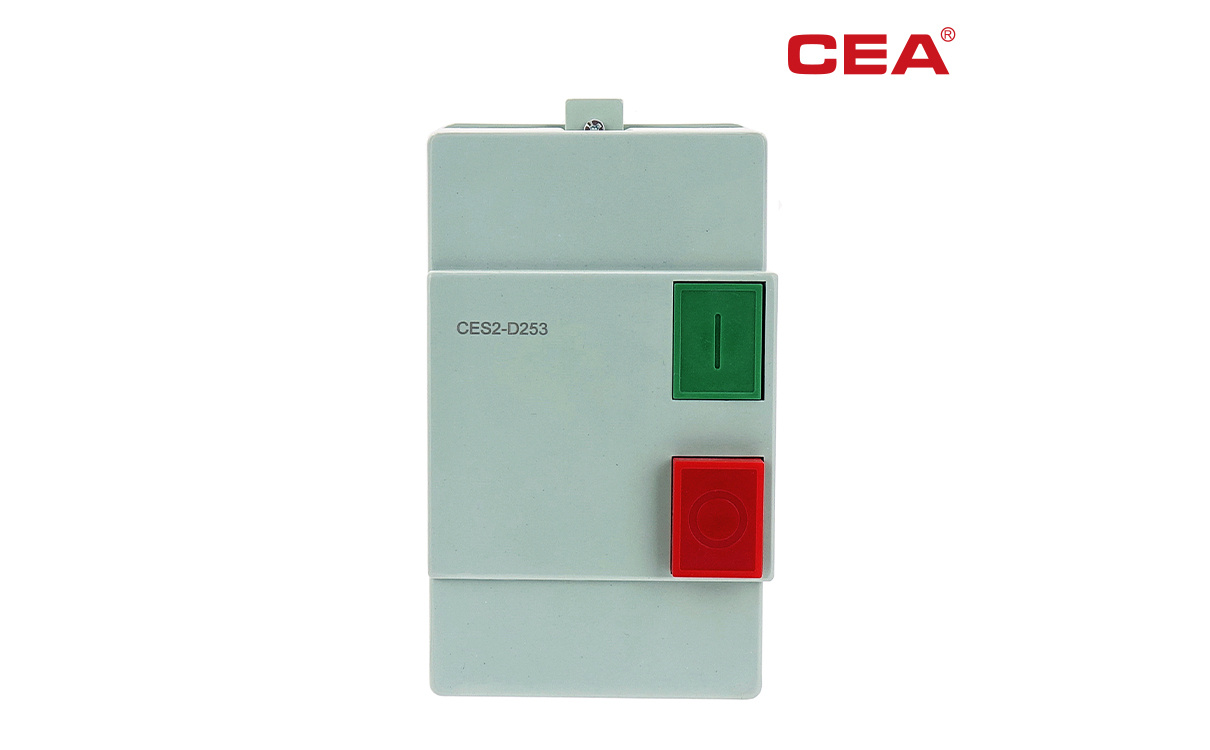

CES2 magnetic starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550V for distance making and breaking circuit and frequent start and control motor,it has the features of small volume,light weight,low power consumption,high efficiency,safe and reliable performance etc.
◆Application
CES2 magnetic starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550V for distance making and breaking circuit and frequent start and control motor,it has the features of small volume,light weight,low power consumption,high efficiency,safe and reliable performance etc.
◆Specifications
Type | Max.Power AC3 Duty(KW) | Rated | Type of | Suitable | ||||||
LL | NL | 220V | 380V | 415V | 440V | 500V | 660V | |||
CES2-094... CES2-093... | - - | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | 9 | IP42-1P65 | CER2-1312 |
CES2.124... CES2-123... | CES2-094... CES2-093... | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 12 | IP42 | CER2-1316 |
CES2-188... CES2-185... | CES2-124... CES2.123... | 4 | 7.5 | 9 | 9 | 10 | 10 | 18 | IP42 | CER2.1321 |
CES2-258... CES2-255... | CES2-188... CES2-185... | 5.5 | 11 | 11 | 11 | 15 | 15 | 25 | IP42 | CER2-1322 |
CES2-325... | CES2-255... | 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | 32 | IP55 | CER2-2355 |
CES2.405... | CES2-325... | 11 | 18.5 | 22 | 22 | 22 | 30 | 40 | 1P55 | CER2-3353 |
CES2.505... | CES2-405... | 15 | 22 | 25 | 30 | 30 | 30 | 50 | 1P55 | CER2-3357 |
CES2-655... | CES2-505... | 18.5 | 30 | 37 | 37 | 37 | 37 | 65 | I1P55 | CER2-3361 |
CES2-805... | CES2-655... | 22 | 37 | 45 | 45 | 55 | 45 | 80 | IP55 | CER2-3363 |
CES2-955... | CES2-805... | 25 | 45 | 45 | 45 | 55 | 45 | 95 | IP55 | CER2-3365 |
Standard Control Circuit Voltages
Volts | 24 | 42 | 48 | 110 | 220/230 | 230 | 240 | 380/400 | 400 | 415 | 440 |
50/60Hz | B7 | D7 | E7 | F7 | M7 | P7 | U7 | Q7 | V7 | N7 | R7 |
◆Dimensions
