Type

CETH3-☐

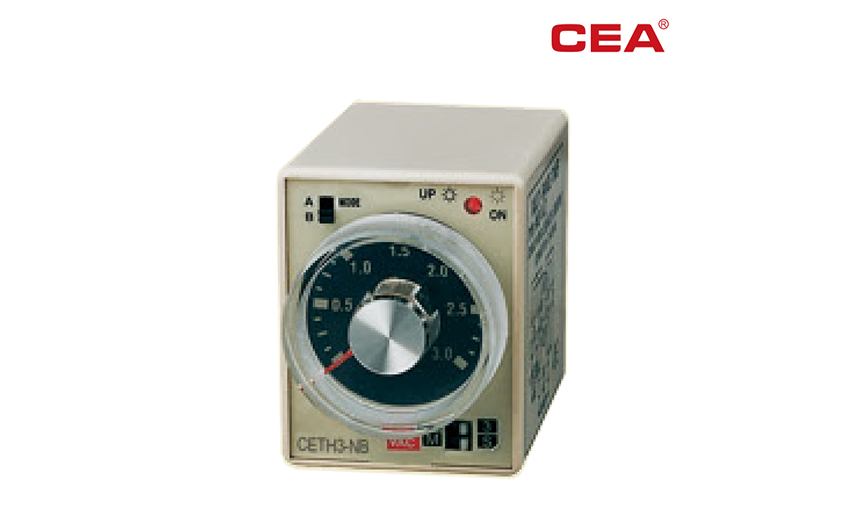

CETH3-N☐

Dimensions(mm)

50H×40W×57.5D

50H×40W×57.5D

Mounting&
Socket

Surface(-n)

PF083A(E)

PF083A(E)

Flush(-y)

US-08P3G-08

US-08P3G-08

Full Timing Range

A:1S,10S,1M,10M
S:3S,30S,3M,30M
C:6S,60S,6M,60M
D:1M,10M,1H,10H
E:3M,30M,3H,30H

Rated Voltage

DC(V):12,24
AC(V):12,24,110,220,240,380,50/60Hz

Indicator Operating

ON-UP Operating

Time Operating Flicker

O/P
Contact

Model

CETH1☐

CETH2☐

CETH3☐

Mode A/B

Time Limit 1C

5A

5A

5A

Time Limit 2C

5A

5A

Instantenous 1C

5A

5A

Life

Mechanical

5×10⁶ times

Electrical

10⁵times

Accuracy

Repeat Error

±1%max

Setting Error

±10%max

Voltage Error

±1%max

Temp,Error

±2%max

Reset Time

0.1 sec max

Consumed Power

2VA

Ambient Temperature

-10℃~+55℃

Ambient Humidity

48-85%RH

Weight

160g

Connection Diagrams
Timing Chart

33I

33E

33F

33H

33J
