◆Specifications
Classification | Mini Electromagnetic Relay Series | |
Type | CE73 | |
Terminal layout | 3Z | |
Contact capacity | AC | 10A 250V |
DC | 10A 30V | |
Contact resistance(mΩ） | ≤50mΩ | |
Insulation resistance(mΩ） | ≤500mΩ | |
Dielectric strength | BOC | 1500V AC |
BCC | 1500V AC | |
Coil nominal voltage | AC | 6 to 380V |
DC | 6 to 220V | |
Coil nominal power | AC | 2.0VA to 2.8VA |
DC | ≤0.5W | |
Electrical life(OPS) | 105 | |
Mechanical life(OPS) | 107 | |
Operating temperature(℃) | -40~+60 | |
Weight(g) | ≤85 | |
Mounting methods | Outlet | |

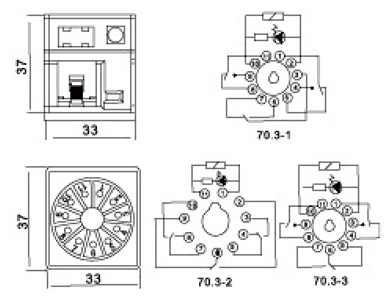

Dimensions |  | |
