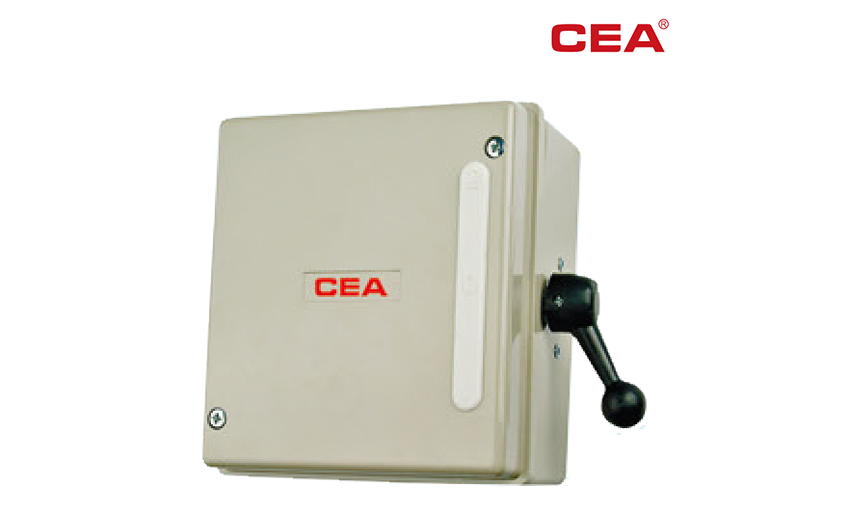

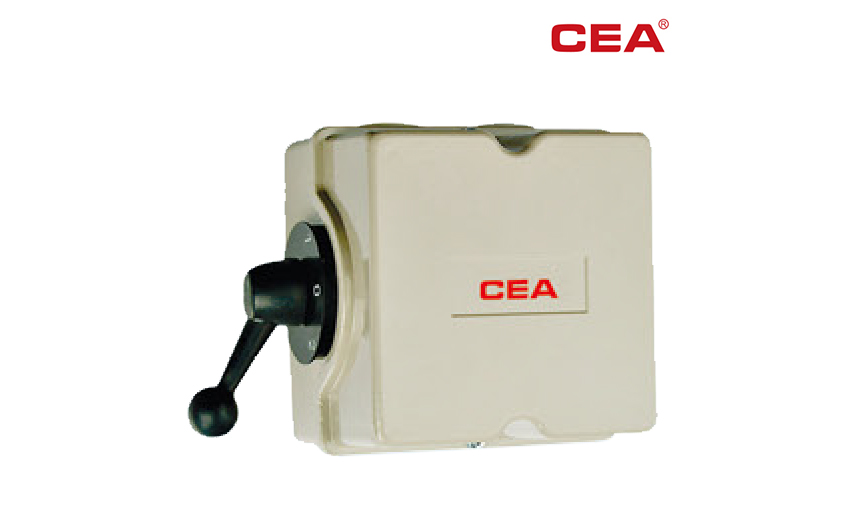

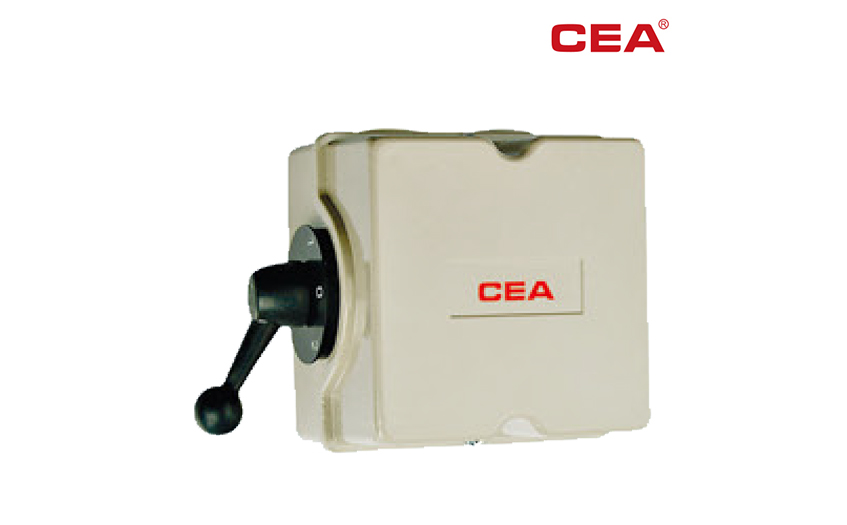

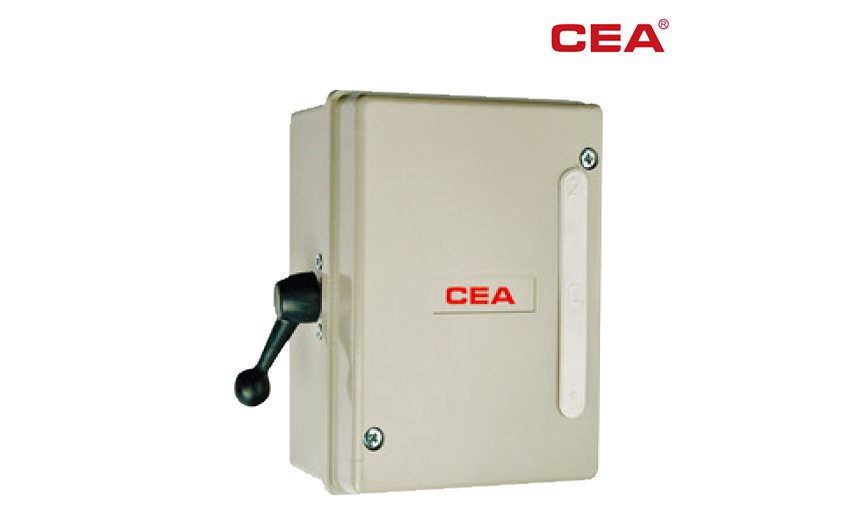

CFL1 Changeover Switch is used to start,stop,forward or backward directly three-phase asynchronous electric motor with AC 50Hz,voltage 230-690V,AC current up to 100A.It can also be used for changeover from one kind of circuit to another.
◆Application
CFL1 Changeover Switch is used to start,stop,forward or backward directly three-phase asynchronous electric motor with AC 50Hz,voltage 230-690V,AC current up to 100A.It can also be used for changeover from one kind of circuit to another.
◆Specifications
Type | Heated | Rated Insulated | Rated Voltage (V) | Rated | Rated (A) | Rated | |||
CFL1-16 | 16 | 690 | 230 | 400 | 690 | 16 | 8 | 5 | 3 |
CFL1-25 | 25 | 690 | 230 | 400 | 690 | 25 | 12 | 7 | 5.5 |
CFL1-32 | 32 | 690 | 230 | 400 | 690 | 32 | 16 | 9 | 7.5 |
CFL1-40 | 40 | 690 | 230 | 400 | 690 | 40 | 22 | 12 | 11 |
CFL1-63 | 63 | 690 | 230 | 400 | 690 | 63 | 40 | 22 | 18.5 |
CFL1-100 | 100 | 690 | 230 | 400 | 690 | 100 | 62 | 32 | 30 |

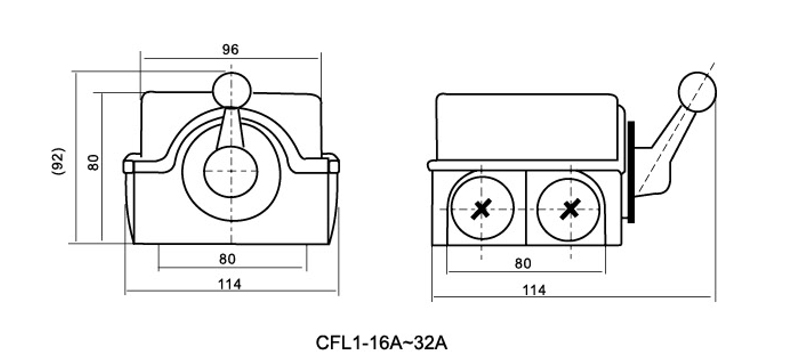

◆Dimensions
