Metal Cable Gland M Type-Accessories-CEA Group International Co., Ltd

Material:Brass with nickel plated.

Usage:Used for fixing cables and provide effective protection against dust,oil, water penetrating electrical distribution box,electromechanical control panel and other instruments.Innovative design for seal and clamp,wide clamp range,strong resistance against tensile strength and thus it can protect cables effectively.

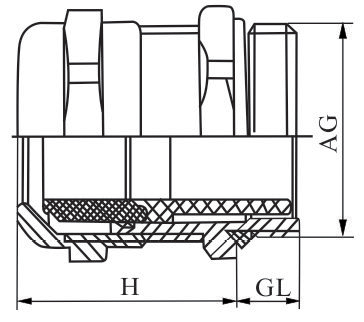

Thread size	Cable Range	Outer Diameter of Thread(mm)	Mounting Hole Diameter (mm)	Thread Length GL(mm)	lengthened Type GL(mm)	Jiont Length H(mm)	Spanner Size (mm)
M8x1.25	4-2	8	8-8.2	5	7	16	11
M10x1.5	6-3	10	10-10.2	5	7	16	12
M12x1.5	6.5-3	12	12-12.2	7	10	19	14
M14x1.5	8-4	14	14-14.2	7	10	19	18
M16x1.5	8-4	16	16-16.2	8	10	20	18
M18x1.5	10-5	18	18-18.2	8	10	21	20
M20x1.5	12-6	20	20-20.2	8	15	22	22
M22x1.5	14-10	22	22-22.2	8	15	23	24
M24x1.5	14-10	24	24-24.2	9	15	25	24/27
M25x1.5	14-10	25	25-25.2	9	15	25	24/27
M25x1.5	18-13	25	25-25.2	9	15	27	30/27
M27x1.5(2)	18-13	27	27-27.2	9	15	27	30
M28x1.5(2)	18-13	28	28-28.2	9	15	27	30
M30x1.5(2)	18-13	30	30-30.2	9	15	29	30/32
M32x1.5(2)	22-15	32	32-32.2	10	15	29	35
M33x1.5(2)	22-15	33	33-33.2	10	15	29	35
M36x1.5(2)	25-18	36	36-36.2	10	15	31	40
M37x1.5(2)	25-18	37	37-37.2	10	15	31	40
M40x1.5(2)	25-18	40	40-40.2	11	15	31	40/45
M40x1.5(2)	30-22	40	40-40.2	11	15	35	45
M42X1.5(2)	30-22	42	42-42.2	11	15	35	45
M47×1.5(2)	33-25	47	47-47.2	11	15	37	50
M48x1.5(2)	33-25	48	48-48.2	11	15	37	50
M50x1.5(2)	38-32	50	50-50.2	12	15	37	57/55
M54x1.5(2)	38-32	54	54-54.2	12	15	38	57
M56x1.5(2)	38-32	56	56-56.2	12	15	38	57/59
M60x1.5(2)	44-37	60	60-60.2	13	15	38	65
M63x1.5(2)	44-37	63	63-63.2	13	15	38	65
M64x1.5(2)	44-37	64	64-64.2	13	15	38	65/68
M72x2	52-42	72	72-72.2	15	20	42	77
M75x2	52-42	75	75-75.2	15	20	42	77
M80x2	62-55	80	80-80.2	15	20	45	90
M88x2	70-65	88	88-88.2	15	20	45	94
M100x2	84-78	100	100-100.2	15	20	45	110
