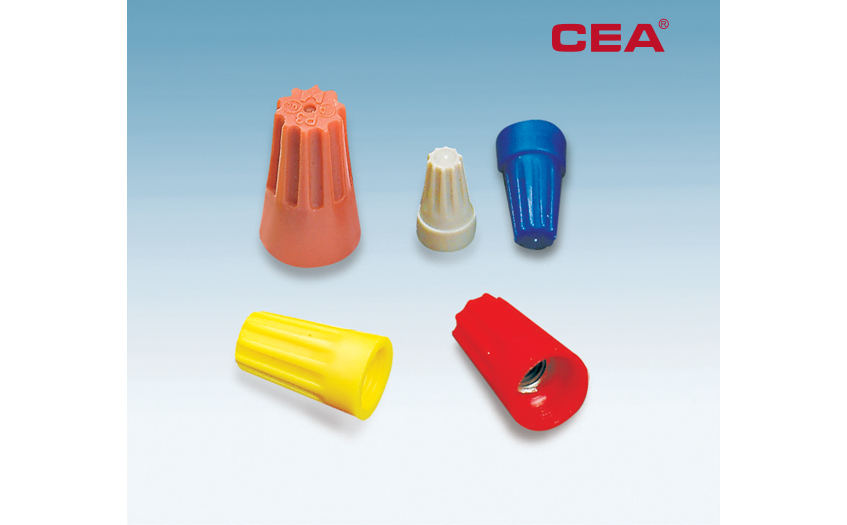

Material:UL Nylon 66,with spring inside.
Usage:peel wire coat,insert the wire in,then tighten.
Material:UL Nylon 66,with spring inside.
Usage:peel wire coat,insert the wire in,then tighten.
Item No. | H(mm) | W(mm) | D(mm) | Suitable Wires | Color |
CP1 | 15 | 8.7 | 6.5 | MIN#20×1+#22×1 | Grey |
CP2 | 18 | 10.0 | 7.5 | MIN#20×3 | Blue |
CP3 | 23 | 11.2 | 9.5 | MIN#20×3 | Orange |
CP4 | 24.2 | 13.6 | 10.8 | MIN#14×1+#18×1 | Yellow |
CP6 | 27.8 | 16.1 | 12.7 | MIN#14×2 | Red |
Item No. | Dimension(mm) | Suitable Wire | Color | ||||
A | B | C | D | E | |||
SW1 | 6.7 | 10.0 | 19.0 | 8.7 | 25.9 | 18-10 | Yellow |
SW2 | 7.8 | 11.2 | 18.95 | 8.55 | 28.9 | 22-8 | Brown |
SW3 | 9.4 | 13.3 | 22.9 | 9.2 | 31.9 | 18-8 | Red |
SW4 | 10.5 | 14.5 | 25.1 | 9.6 | 32.93 | 18-8 | Grey |
SW5 | 12.8 | 17.5 | 31.8 | 12.45 | 40.2 | 14-6 | Blue |
