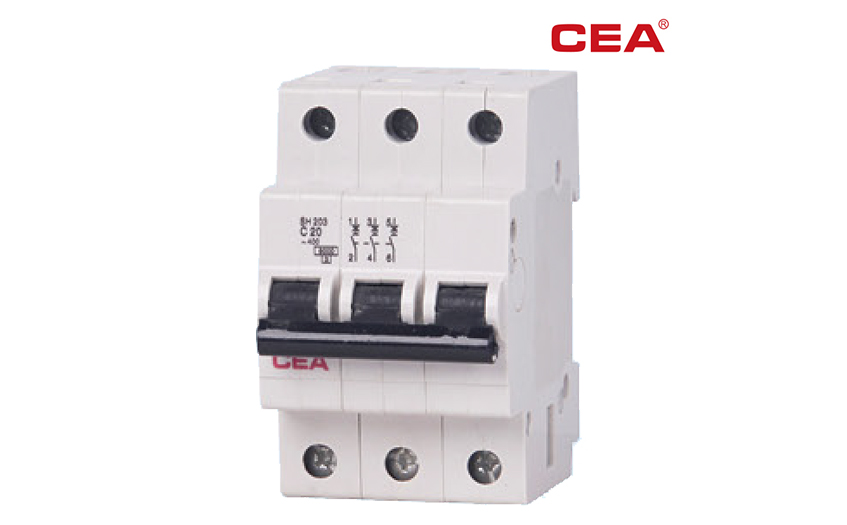

CEB250 mini circuit breaker has features of new structure,excellent performance,easy installation,high breaking capacity.
◆Application
CEB250 mini circuit breaker has features of new structure,excellent performance,easy installation,high breaking capacity.It is mainly used for overload and short circuit protection of AC 50/60Hz,rated voltage of single pole up to 230V,rated current up to 63A and in distribution of illumination of industry,commerce and buildings.It comforms to IEC364,SSCP5.
◆Specifications
Rated Current(A) | Pole No. | Rated Voltage(V) | Rated Frequency(Hz) | Breaking Capacity(A) |
2,3,4,6,10,15,16,20,25,32,40,50,63A | 1P | 230V | 50/60Hz | 10KA |
2P,3P | 400V |

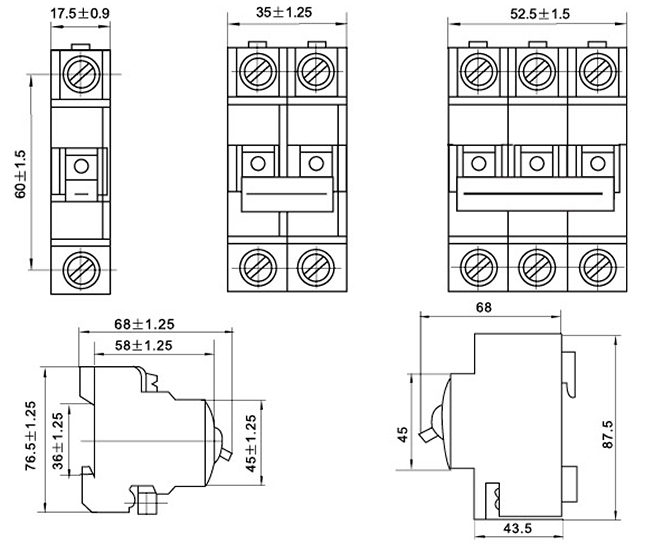

◆Dimensions
