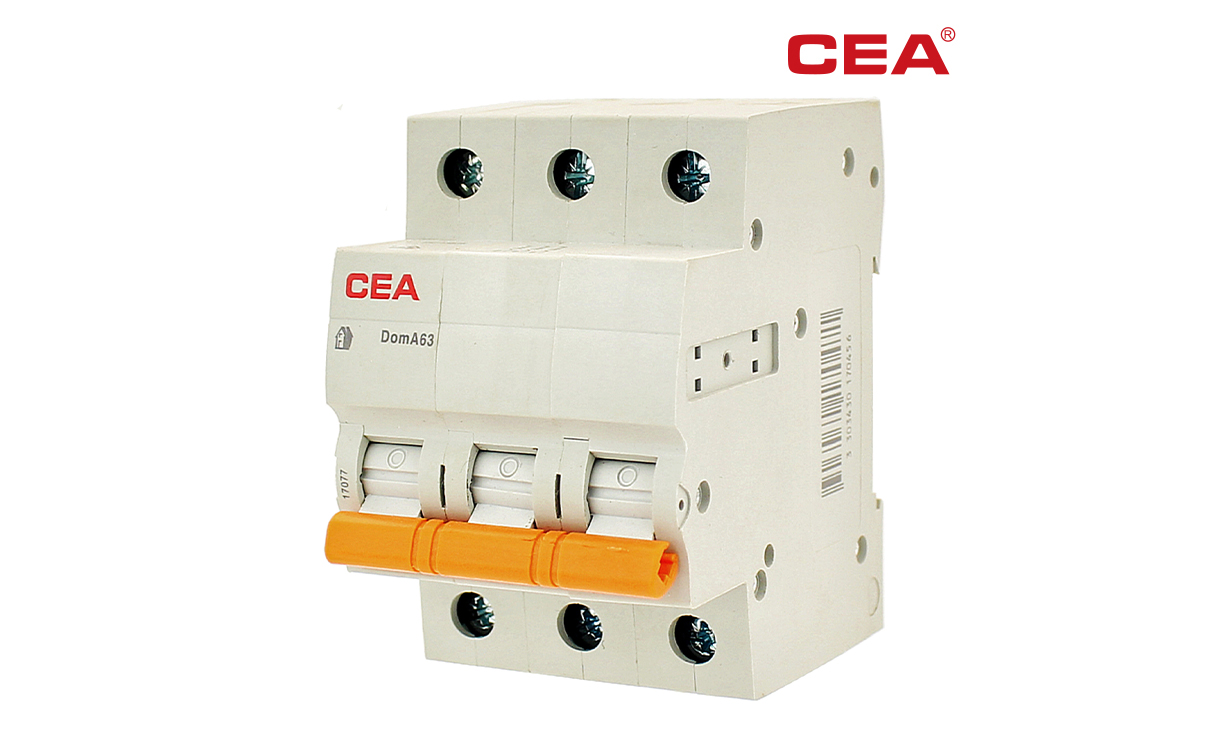

CEB1 series circuit breaker is used in lighting distribution system or motor distnbution system for protecting overload and short-circuit.
◆Application
CEB1 series circuit breaker is used in lighting distribution system or motor distnbution system for protecting overload and short-circuit.The product is novel in structure,light in weight,reliable and excellent in performance.It is mainly used in AC 50Hz/60Hz single-pole 240V or two,three,four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on and off switching electric equipment and lighting circuit in normal case.The product complies with GB10963,IEC60898,BS3871.
◆Specifications
Rated Temperature | 40℃ | |||
Rated Voltage | 240V/415V AC | |||
Rated Current | 1,2,3,4,6,10,15,16,20,25,32,40,50,63A | |||
Electrical Life | 6000 times | |||
Mechanical Life | 20000 times | |||
Weight(g) | 1P | 2P | 3P | 4P |
102 | 208 | 308 | 408 | |
CEB1 | ||||
Standard | Rated Current(A) | Pole No. | Voltage(V) | Breaking Capacity(A) |
BS3871-1 IEC60898 | 1 to 40 | 1 | 240 | 4000 |
2,3,4 | 415 | 4000 | ||
IEC60157-1 | 1 to 40 | 1 | 220/240 | 6000 |
2,3,4 | 220/240 | 12000 | ||
2,3,4 | 380/415 | 6000 | ||

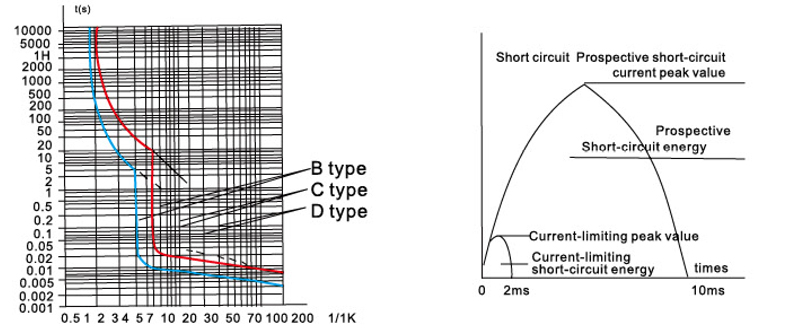

◆Characteristic Curve

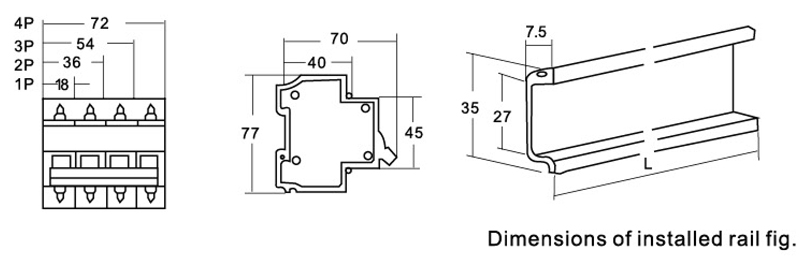

◆Dimensions
