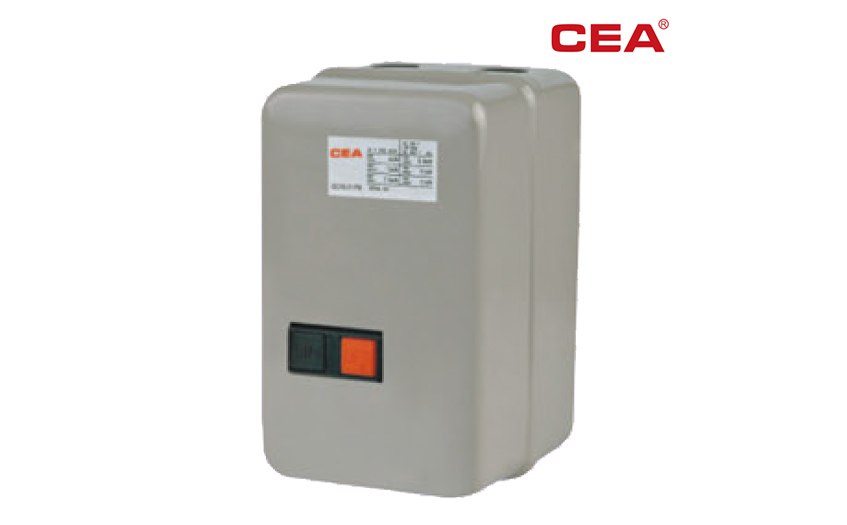

CES8 series magnetic starters are used in a circuit of voltage up to 660V,AC 50-60Hz to start,stop and convert motors,and protect motors from overload and phase failure.
◆Application
CES8 series magnetic starters are used in a circuit of voltage up to 660V,AC 50-60Hz to start,stop and convert motors,and protect motors from overload and phase failure.
◆Specifications
Type | Rated Current | Rated Power (KW) | Aux. | SettingCurrent | |||||||
220V | 380V | 220V | 380V | 550V | 660V | ||||||
CES8-10PM(KP/TP) | 11 | 9 | 2.5 | 4 | 4 | 4 | 1 | - | 0.24A 0.35A 0.5A | ||
CES8-11PM(KP/TP) | 13 | 12 | 3.5 | 5.5 | 5.5 | 5.5 | 1 | - | |||
CES8-18PM(KP/TP) | 18 | 16 | 4.5 | 7.5 | 7.5 | 7.5 | 1 | - | |||
CES8-20PM(KP/TP) | 22 | 22 | 5.5 | 11 | 11 | 7.5 | 1 | - | 024A 0.35A 0.5A | ||
CES8-21PM(KP) | 22 | 22 | 5.5 | 11 | 11 | 7.5 | 1 | 2 | |||
CES8-25PM(KP) | 30 | 30 | 7.5 | 15 | 15 | 11 | 1 | 2 | 3.6A | 19A | |
CES8-35PM(KP) | 40 | 40 | 11 | 18.5 | 18.5 | 15 | 1 | 2 | 22A | 35A | |
CES8-50PM(KP) | 55 | 50 | 15 | 22 | 22 | 22 | 1 | 2 | 15A 22A 29A | ||
CES8-65PM(KP) | 65 | 621 | 18.5 | 30 | 30 | 30 | 1 | 2 | |||
CES8-80PM(KP) | 85 | 85 | 22 | 45 | 45 | 45 | 1 | 2 | 82A | 37A | |
CES8-95PM(KP) | 105 | 105 | 30 | 55 | 55 | 55 | 1 | 2 | 82A | ||
