CES2N Magnetic Starter-Contactor-CEA Group International Co., Ltd

◆Application

CES2N magnetic starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor.It has the features of small volume,light weight,low power consumption,high efficiency,safe and reliable performance etc.

◆Specifications

Type		Max.Power AC3 Duty(KW)						Rated Current (A)	Type of Enclosure	Suitable Thermal Relay(A)
LL (Long Life)	NL (Normal Life)	220V 230V	380V 400V	415V	440V	500V	660V 690V	Rated Current (A)	Type of Enclosure	Suitable Thermal Relay(A)
CES2N-D094... CES2N-D093...	- -	2.2	4	4	4	5.5	5.5	9	IP42-1P65	CER2-1312 CER2-1314
CES2N-D124... CES2N-D123...	CES2N-D094... CES2N-D093...	3	5.5	5.5	5.5	7.5	7.5	12	IP42 IP65	CER2-1316
CES2N-D188... CES2N-D185...	CES2N-D124... CES2N-D123...	4	7.5	9	9	10	10	18	IP42 IP65	CER2.1321
CES2N-D258... CES2N-D255...	CES2N-D188... CES2N-D185...	5.5	11	11	11	15	15	25	IP42 IP65	CER2-1322 CER2-2353
CES2N-D325...	CES2N-D255...	7.5	15	15	15	18.5	18.5	32	IP55	CER2-2355
CES2N-D405...	CES2N-D325...	11	18.5	22	22	22	30	40	1P55	CER2-3353 CER2-3355
CES2N-D505...	CES2N-D405...	15	22	25	30	30	30	50	1P55	CER2-3357 CER2-3359
CES2N-D655...	CES2N-D505...	18.5	30	37	37	37	37	65	I1P55	CER2-3361
CES2N-D805...	CES2N-D655...	22	37	45	45	55	45	80	IP55	CER2-3363 CER2-3365
CES2N-D955...	CES2N-D805...	25	45	45	45	55	45	95	IP55	CER2-3365

Enclousure	CES2N09 and CES2N12	Double insulated.protected to IP42or to I P6 5 9
	CES2N18 and CES2N25	Double insulated,protected to I P42 7orto I P557
	CES2N32 and CES2N95	Metal,IP55 to I P55 9

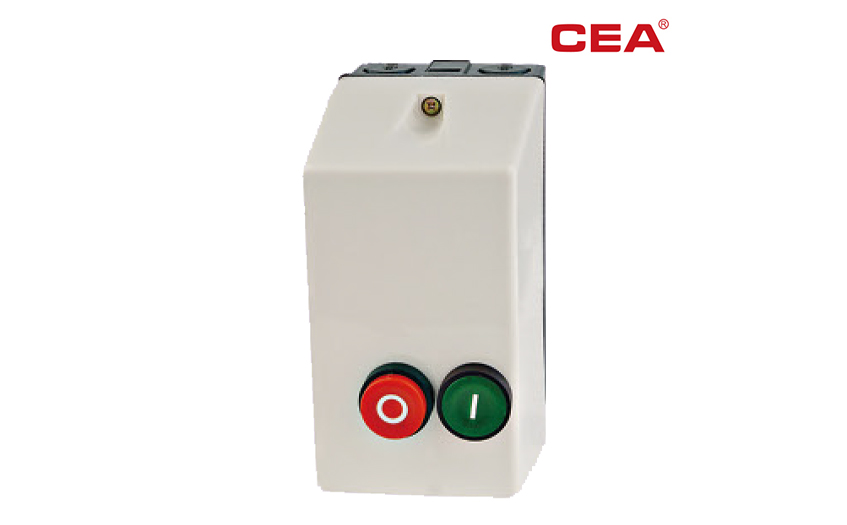

Control(2 Pushbuttons Mounted on Enclosure Cover)	CES2N09 and CES2N95	1 green start button "I" 2 red stop/reset button "O"
Connections	CES2N32 and CES2N95	Pre-wired power and control circuit connections

◆Standard Control Circuit Voltages

Volts	24	42	48	110	220/230	230	240	380/400	400	415	440
50/60Hz	B7	D7	E7	F7	M7	P7	U7	Q7	V7	N7	R7
