●PVC cover,Halogen-free,low smoke,lead-free
●Temperature:-20℃ to 70℃,intermittent up to +100℃.

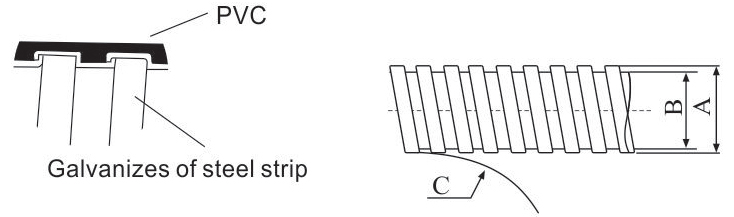

●Hot dipping galvanized steel core,square-locked with cord packing,thick smooth PVC cover.
●Flame self-extinguish,sunlight and UV resistant,suitable for outside installation.
●PVC cover,Halogen-free,low smoke,lead-free
●Temperature:-20℃ to 70℃,intermittent up to +100℃.
●Hot dipping galvanized steel core,square-locked with cord packing,thick smooth PVC cover.
●Flame self-extinguish,sunlight and UV resistant,suitable for outside installation.
Item No. | B | A | C | Reel Length |
Internal | External | Min.Bend | ||
JSB-10 | 7 | 11.8 | 40 | 100m |
JSB-12 | 10.7 | 14.2 | 45 | 100m |
JSB-16 | 12.5 | 17.8 | 50 | 100m |
JSB-20 | 16 | 21.1 | 80 | 50m |
JSB-25 | 21 | 26.4 | 110 | 50m |
JSB-32 | 26.7 | 33.1 | 145 | 50m |
JSB-40 | 35.4 | 41.8 | 180 | 30m |
JSB-50 | 40.4 | 47.9 | 240 | 30m |
JSB-63 | 51.6 | 59.9 | 345 | 20m |
