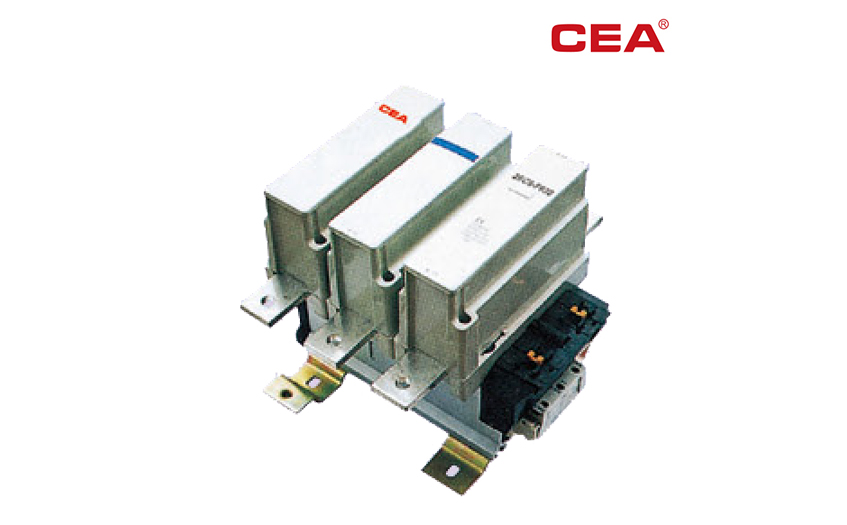

CEC6 series AC Contactor is applicable to the circuits up to the rated voltage100VAC 50Hz or 60Hz,rated current from 115A to 800A,for long distance breaking circuit and frequently starting or controling the motor.
◆Application
CEC6 series AC Contactor is applicable to the circuits up to the rated voltage100VAC 50Hz or 60Hz,rated current from 115A to 800A,for long distance breaking circuit and frequently starting or controling the motor.It also can be used for the control of distribution circuits of rated current from 200A to 1600A.
◆Specifications
Type | CEC6-115 | CEC6-150 | CEC6-185 | CEC6-225 | CEC6-265 | CEC6-330 | CEC6-400 | CEC6-500 | CEC6-630 | CEC6-780 | CEC6-800 | |
Rated | AC-3 | 115 | 150 | 185 | 225 | 265 | 330 | 400 | 500 | 630 | 780 | 800 |
AC-1 | 200 | 250 | 275 | 315 | 350 | 400 | 500 | 700 | 1000 | 1500 | 1500 | |
Standard | 220/230V | 30 | 40 | 55 | 63 | 75 | 100 | 110 | 147 | 200 | 220 | 220 |
380/400V | 55 | 75 | 90 | 10 | 132 | 160 | 200 | 250 | 335 | 400 | 400 | |
415V | 59 | 80 | 100 | 110 | 140 | 180 | 200 | 280 | 375 | 425 | 420 | |
400V | 59 | 80 | 100 | 110 | 140 | 180 | 250 | 295 | 400 | 425 | 420 | |
500V | 75 | 90 | 100 | 129 | 160 | 200 | 257 | 335 | 400 | 450 | 430 | |
660/690V | 80 | 100 | 110 | 129 | 160 | 200 | 280 | 335 | 450 | 475 | 470 | |
1000V | 65 | 65 | 100 | 100 | 147 | 160 | 185 | 335 | 450 | 450 | 450 | |
