This product is suitable for equipment,the instrumentand electric fan,washer,electric refrigerator,an irconditioning alternating current machine start and revolution.With a small loss, antimoist,excellent electrical performance,reliability,large capacity,long life and good self-healing properties.
◆Application
This product is suitable for equipment,the instrumentand electric fan,washer,electric refrigerator,an irconditioning alternating current machine start and revolution.With a small loss, antimoist,excellent electrical performance,reliability,large capacity,long life and good self-healing properties.
◆Specifications

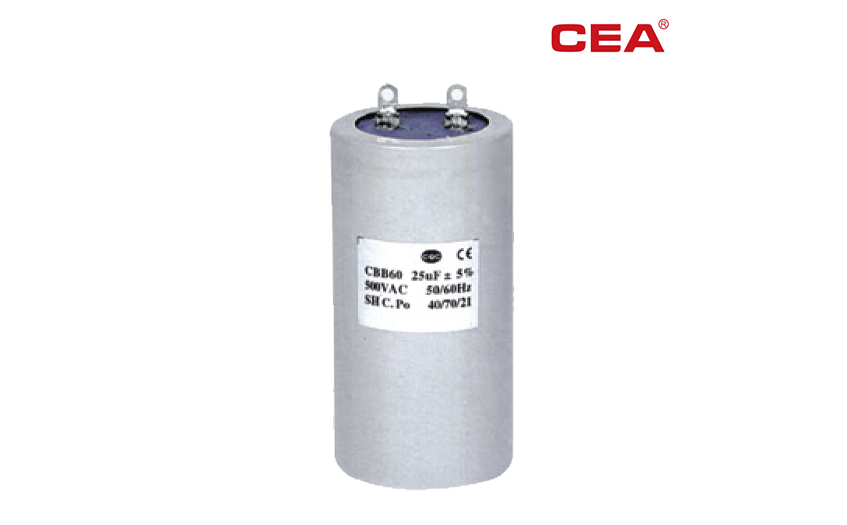

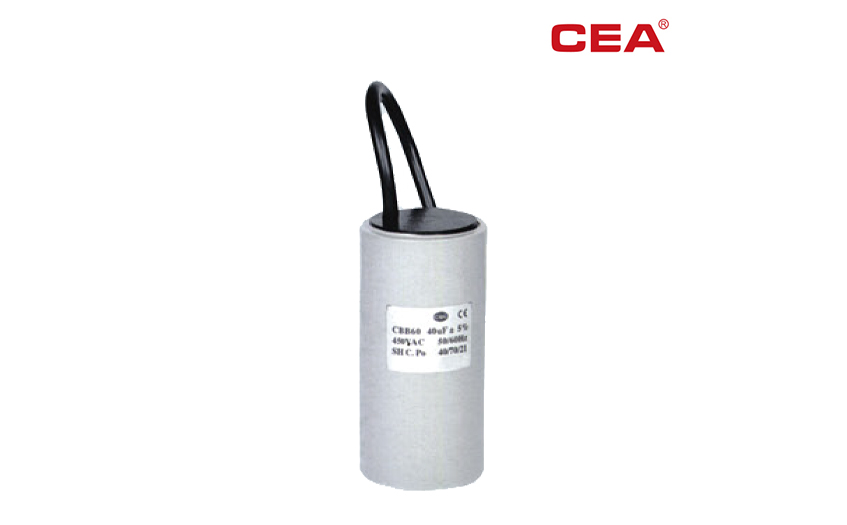

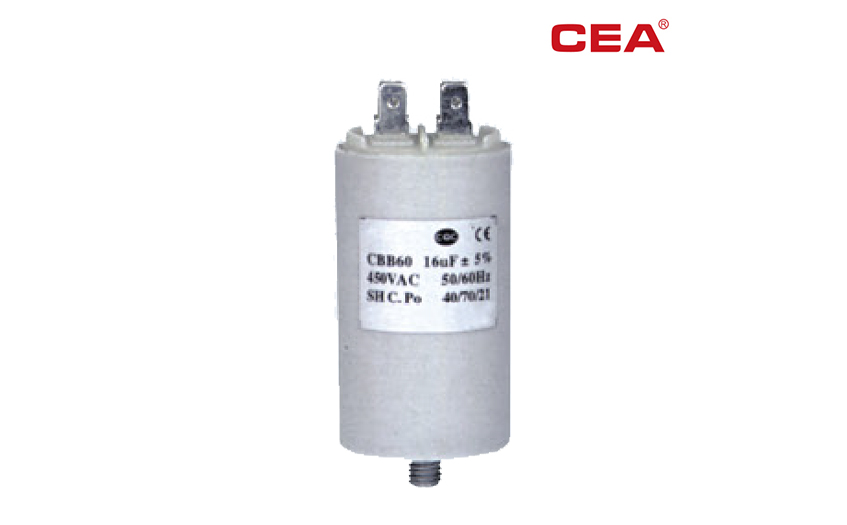

Spec | CBB60 |
Operating Temperature | 40℃-70℃ |
Capacity Range | 2μF-100μF |
Capacity Tolerance | J( ±5%)K(±10%) |
Rated Voltage | 250V,400V,450V,630V |
Withstand Voltage | AC≥1.75Un 2S(Imax≤1.3lnA) |
Withstand Box Voltage | AC≥2000V 2S |
Loss Angle | ≤0.004(1KHz,20℃)) |
Insulation Resistance | ≥3000S |
◆Specifications
Type | 250V | 400V-450W | 630V |
Capacitance Range(μF) | DXH | DXH | DXH |
3 | 34×50 | 34×50 | 34×60 |
5 | 34×50 | 34×50 | 34×60 |
6 | 34×50 | 34×50 | 38×70 |
8 | 34×50 | 34×60 | 38×70 |
10 | 34×50 | 34×60 | 42×70 |
12 | 34×50 | 38×70 | 42×70 |
15 | 34×60 | 38×70 | 42×80 |
16 | 34×60 | 38×70 | 42×80 |
20 | 38×70 | 42×70 | 45×90 |
25 | 38×70 | 42×80 | 45×90 |
30 | 42×70 | 50×100 | 50×100 |
35 | 42×70 | 50×100 | 50×120 |
40 | 45×90 | 50×100 | 50×120 |
45 | 45×90 | 50×100 | 55×120 |
50 | 45×90 | 50×100 | 60×120 |
620 | 45×90 | 50×120 | 60×120 |
100 | 50×100 |
