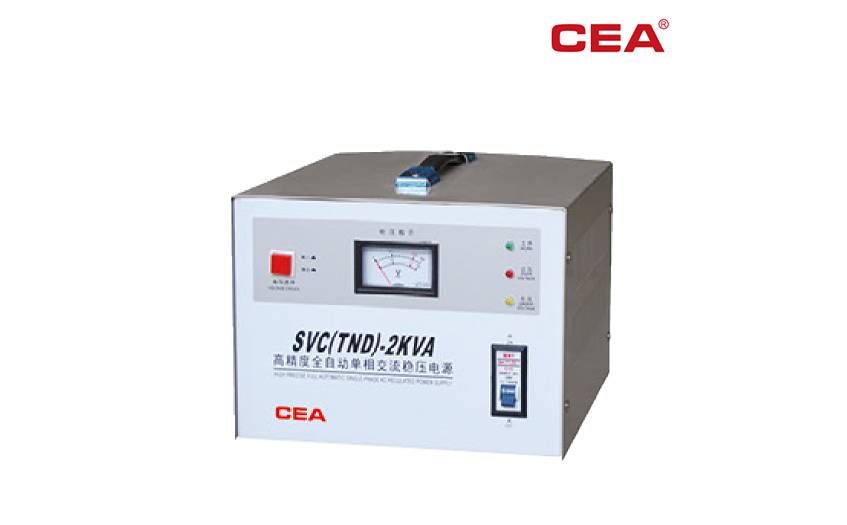

The SVC series voltage stabilizer is composed of servo motor,control circuit, compensator.It has advantages of small volume,light weight,high efficiency,wide voltage stabilizing range,no waveform distortion etc.All products are provided with over-voltage/under-voltage protection,delay (selective)protection,error protection and voltage two-way indication,which make the function of the product more perfect and reliable.
◆General
The SVC series voltage stabilizer is composed of servo motor,control circuit, compensator.It has advantages of small volume,light weight,high efficiency,wide voltage stabilizing range,no waveform distortion etc.All products are provided with over-voltage/under-voltage protection,delay (selective)protection,error protection and voltage two-way indication,which make the function of the product more perfect and reliable.To ensure quality,we introduce the advanced technology abroad,main parts adopt import spares.They are widely used in the fields of household appliances, industrial and agricultural production,scientific research,medicine and health areas. It is a kind of regulating power supply with the highest ratio of perfommance to price at present.
◆Application
Computer,Duplicator,Test equipment,Lighting appliance,TV sets,Medical treatment equipment,Communication system etc,
◆Technology Parameter
Input voltage | 140-260V |
Output voltage | 220V±3% 110V±6% |
Phase | Single-Phase |
Frequency | 50-60Hz |
Adjust time | <1sec.(against 10%input voltage deviation) |
Protection over voltage | 250±2V |
Delay | Short Delay 3-7 sec |
Ambient temperature | -10+40℃ |
Temperature rise | <60℃(full load) |
Relative humidity | <90% |
Wave form distortion | No wave-form distortion |
Efficiency | >95% |
Insulation resistance | ≥5MΩ |
◆Specification,Dimensions and Weight
Spec Model | Unit(pcs) | Package size(mm) | Weight(Kg) |
SVC-500VA | 4 | 435×240×360 | 20 |
SVC-1000VA | 4 | 520×290×400 | 28 |
SVC-1500VA | 4 | 520×290×400 | 30 |
SVC-2000VA | 2 | 590×340×240 | 20 |
SVC-3000VA | 2 | 600×360×270 | 28 |
SVC-5000VA | 1 | 550×320×260 | 21 |
SVC-8000VA | 1 | 550×320×260 | 31 |
SVC-10000VA | 1 | 550×370×310 | 34 |
