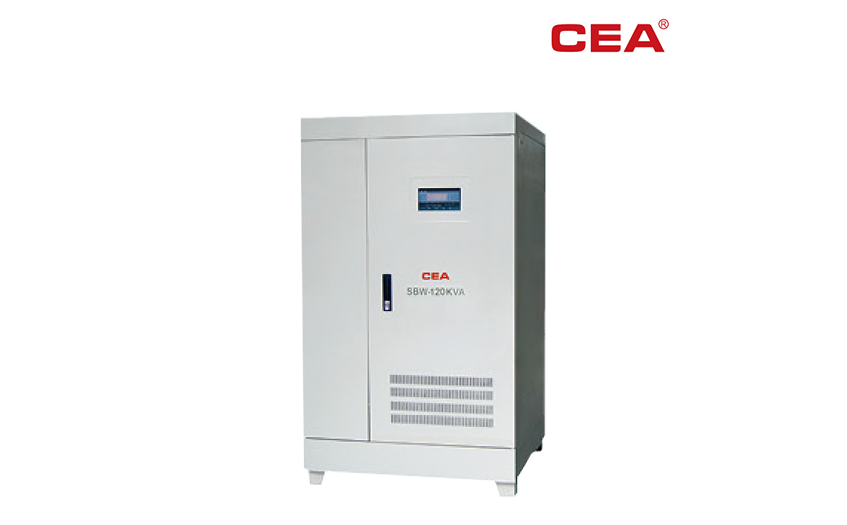

DBW/SBW Series full automatic compensated voltage stabilizers is an energy-saving new product developed by our company absorbing the advanced technology of international same product.
◆General
DBW/SBW Series full automatic compensated voltage stabilizers is an energy-saving new product developed by our company absorbing the advanced technology of international same product.With the functions of over/under-voltage protection,delay and error protection.It has advantages of small volume,light weight,large capacity, high efficiency,wide range,high precision,strong protection.Without wave-form distortion,reliable operation and easy installation etc.
◆Application
Widely used in post and telecommunications,department stores,elevators, hospitals.schools,printing,securities and other occasions where all needs normal voltage to ensure,such as workshop mines medium enterprises.Some of the important equipment and computer power and support.
◆Technology Parameter
Input voltage | Single-Phases:175-265V Three phases four-line |
Output voltage | Single Phase:220V:Three phases:380V |
Output deviance | 1-5%(Adjustable) |
Frequency | 50Hz/60Hz |
Efficiency | ≥95%(Power>50KVA) |
Response time | ≤1.5S |
Ambient temperature | -10℃~+40℃ |
Insulation resistance | ≥5MΩ |
Electrical intensity | Without breakdown and flashover phenomena at power |
Overload | Double rated current,one min |
Wave form distortion | Non-lack fidelity wareform |
Protect | Overvoltage、overcurrent、feed phases |
◆Specification,Dimensions and Weight
Spec Model | Unit(pcs) | Package size(mm) | Weight(Kg) | Spec Model | Unit(pcs) | Package size(mm) | Weight(Kg) |
DBW-20K | 1 | 700×500×1350 | 283 | SBW-150K | 1 | 1000×720×1700 | 550 |
DBW-30K | 1 | 700×500×1350 | 310 | SBW-180K | 1 | 1000×720×1700 | 570 |
DBW-40K | 1 | 700×500×1350 | 330 | SBW-200K | 1 | 1000×720×2000 | 630 |
DBW_50K | 1 | 800×600×1500 | 360 | SBW-225K | 1 | 1100×800×1800 | 660 |
DBW-60K | 1 | 800×600×1500 | 380 | SBW-250K | 1 | 1100×800×2000 | 700 |
DBW-70K | 1 | 800×600×1500 | 400 | SBW-300K | 1 | 1100×800×2100 | 740 |
DBW-80K | 1 | 800×600×1500 | 430 | SBW-320K | 1 | 1100×800×2100 | 760 |
DBW-100K | 1 | 900×700×1700 | 480 | SBW-400K | 1 | 1000×800×2100/2柜 | 1100 |
DBW-120K | 1 | 900×700×1700 | 510 | SBW-500K | 1 | 1000×800×2100/2柜 | 1500 |
DBW-150K | 1 | 900×700×1700 | 530 | SBW-600K | 1 | 1000×800×2100/2柜 | 2200 |
DBW-180K | 1 | 1000×800×1900 | 570 | SBW-800K | 1 | 850×1000×2200/3柜 | 2800 |
DBW-200K | 1 | 1000×800×1900 | 600 | SBW-1000K | 1 | 850×1000×2200/3柜 | 3500 |
SBWL50K | 1 | 800×620×1350 | 350 | SBW-1200K | 1 | 850×1000×2200/3柜 | 4100 |
SBWL60K | 1 | 800×620×1350 | 370 | SBW-1600K | 1 | 110×1100×2200/4柜 | 5560 |
SBW-100K | 1 | 850×620×1500 | 420 | SBW-2000K | 1 | 110×1100×2200/4柜 | 7100 |
