Switching Power Supply-Stablizer-CEA Group International Co., Ltd

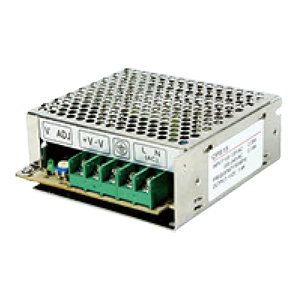

CPS-15

Size:99×97×35MM

CPS-25

Size:110×78×36MM

CPS-35

Size:130×99×39MM

CPS-50、CPS-70

Size160×99×42MM

CPS-100

Size198×99×42MM

CPS145

Size:200×110×51MM

◆AC-DC Single Population Output

Type	DC Output Current(A)	Output Voltage Range	Output Current	Range Efficiency
CPS-15-5 CPS-15-12 CPS-15-24	5V 12V 24V	±2% ±1% ±1%	0-3A 0-1.3A 0-0.7A	65% 68% 72%
CPS-25-5 CPS-25-12 CPS-25-15 CPS-25-24	5V 12V 15V 24V	±2% ±1% ±1% ±1%	0-5A 0-2.1A 0-1.7A 0-1.1A	72% 76% 77% 80%
CPS-35-5 CPS-35-12 CPS-35-15 CPS-35-24	5V 12V 15V 24V	±2% ±1% ±1% ±1%	0-7A 0-3A 0-2.4A 0-1.5A	70% 76% 78% 78%
CPS-50-5 CPS-50-12 CPS-50-15 CPS-50-24	5V 12V 15V 24V	±2% ±1% ±1% ±1%	0-10A 0-4.2A 0-3.4A 0-2.1A	71% 78% 78% 82%
CPS-70-5 CPS-70-12 CPS-70-15 CPS-70-24	5V 12V 15V 24V	±2% ±2% ±2% ±1%	0-14A 0-6A 0-4.8A 0-3A	72% 78% 78% 82%
CPS-100-5 CPS-100-7.5 CPS-100-10 CPS-100-12 CPS-100-15 CPS-100-18 CPS-100-24	5V 7.5V 10V 12V 15V 18V 24V	±2% ±1% ±1% ±1% ±1% ±1% ±1%	0-13.6A 0-10A 0-8.5A 0-6.7A 0-5.6A 0-5.6A 0-4.5A	78% 80% 80% 81% 81% 82% 84%
CPS-145-5 CPS-145-7.5 CPS-145-12 CPS-145-15 CPS-145-24	5V 7.5V 12V 15V 24V	±2% ±1% ±1% ±1% ±1%	0-25A 0-18A 0-12A 0-9.6A 0-6A	78% 80% 80% 81% 83%
CPS-150-5 CPS-150-7.5 CPS-150-12 CPS-150-15 CPS-150-24	5V 7.5V 12V 15V 24V	±2% ±1% ±1% ±1% ±1%	0-30A 0-20A 0-12.5A 0-10A 0-6.5A	78% 80% 82% 84% 85%
CPS-200-5 CPS-200-7.5 CPS-200-12 CPS-200-15 CPS-200-24	5V 7.5V 12V 15V 24V	±2% ±1% ±1% ±1% ±1%	0-40A 0-26.7A 0-16.7A 0-13.4A 0-8.4A	73% 76% 80% 81% 83%
CPS-240-5 CPS-240-12 CPS-240-15 CPS-240-24	5V 12V 15V 24V	±2% ±1% ±1% ±1%	0-48A 0-18A 0-15A 0-10A	78% 82% 83% 84%

CPS250

Size:

230×118×60MM

CPS320

Size:

125×115×50MM

CPD-30

Size:

130×99×39MM

CPD-60

Size:

160×99×42MM

CPD-120

Size:

200×110×51MM

CPD-30

Size:

130×99×39MM

◆AC-DC Single Population Output

Type	DC Output Current(A)	Output Voltage	Range Output Current	Range Efficiency
CPS-320-5 CPS-320-12 CPS-320-24 CPS-320-48	5V 12V 24V 48V	±2% ±1% ±1% ±1%	0-50A 0-25A 0-12.5A 0-6.5A	77% 85% 86% 87%
CPS-350-5 CPS-350-12 CPS-350-24 CPS-350-48	5V 12V 24V 48V	±2% ±1% ±1% ±1%	0-60A 0-29A 0-14.6A 0-7.3A	73% 79% 81% 83%
CPS-500-12 CPS-500-13.5 CPS-500-15 CPS-500-24 CPS-500-27 CPS-500-48	12V 13.5V 15V 24V 27V 48V	±1% ±1% ±1% ±1% ±1% ±1%	0-40A 0-36A 0-32A 0-20A 0-18A 0-10A	84% 84% 83% 85% 85% 87%

◆AC-DC Double Population Output

Type	DC Output Current(A)	Output Voltage Range	Power	Efficiency
CPD-30A	5V,0.5-4.04 12V,0.1-1.0	±2% ±3%	32W	72%
CPD-30B	5V,0.5-4.04 12V,0.1-1.0	±2% ±3%	35W	74%
CPD-50A	5V,1.0-6.0 12V,0.3-2.0	±2% ±5%	54W	73%
CPD-50B	5V,1.0-6.0 12V,0.2-1.0	±2% ±8%	54W	73%
CPD-60A	5V,0.3-6.0 12V,0.2-4.0	±2% ±6%	56W	73%
CPD-60B	5V,0.3-6.0 12V,0.2-2.2	±2% ±5%	58W	76%
CPD-120	5V,2.0-12 12V,0.5-5.0	±2% ±6%	78W	78%
CPD-120B	5V,2.0-10 12V,0.4-4.0	±2% ±7%	80W	80%

◆AC-DC Three Population Output

Type	DC Output Current(A)	Output Voltage Range	Power	Efficiency
CPD-30A	5V,0.5-4.04 12V,0.1-1.0 -5V,0.1-0.5A	±2% ±3% ±2%	30W	70%
CPD-30B	5V,0.5-4.04 12V,0.1-1.0 -12V,0.1-0.5A	±2% ±3% ±2%	30W	70%

CPT-60

Size: 160×99×42MM

CPT-120

Size:200×110×51MM

CPQ-60

Size:160×99×42MM

CPQ-120

Size:200×110×51MM

◆AC-DC Three Population Output

Type	DC Output Current(A)	Output Voltage Range	Power	Efficiency
CPT-50A	5V,0.6-7.0A 12V,0.2-1.0A -12V,0.2.10A	±2% ±5% ±5%	52W	66%
CPT-50B	5V,0.6-5.0A 12V,0.2-1.0A -12V,0.2-1.0A	±2% ±5% ±5%	49W	69%
CPT-50C	5V,0.6-4.0A 15V,0.2-1.0A -15V,0.2-1.0A	±2% ±5% ±5%	50W	71%
CPT-50D	5V,0.6-4.0A 12V,0.2-1.2A 24V,0.2-1.2A	±2% ±6% ±6%	51W	72%
CPT-120A	5V,2.0-12A 12V,0.5-5.0A -5V,0.2-1.0A	±2% ±6% ±6%	120W	77%
CPT-120B	5V,0.6-5.0A 12V,0.5-5.0A -12V,0.2-1.0A	±2% ±6% ±6%	115W	77%
CPT-120C	5V,2.0-12A 15V,0.2-5.0A -15V,0.2-1.0A	±2% ±5% ±5%	117W	76%
CPT-120D	5V,2.0-12A 12V,0.2-5.0A 24V,0.2-2.0A	±2% ±6% ±6%	112W	80%

◆AC-DC Three Population Output

Type	DC Output Current(A)	Output Voltage Range	Power	Efficiency
CPQ-60A	5V,0.5-8.0A 12V,0.1-3.0A -5V,0.0-1.0A -12V,0.0-1.0A	±2% ±6% ±5% ±5%	60W	70%
CPQ-60B	5V,0.5-8.0A 12V,0.1-3.0A 24V,0.1-1.5A -12V,0.0-1.0A	±2% ±6% ±5% ±5%	62W	75%
CPQ-120B	5V,2.0-12A 12V,0.5-5.0A -5V,0.2-1.0A -12V,0.2-1.0A	±2% ±6% ±6% ±6%	120W	77%
CPQ-120B	5V,2.0-12A 12V,0.5-5.0A 24V,0.2-2.0A -12V,0.2-1.0A	±2% ±6% ±6% ±6%	124W	80%
